ASTM E433-71(1997)
Superseded , Reaffirmed Standard
Historical

ASTM E433-71(1997)

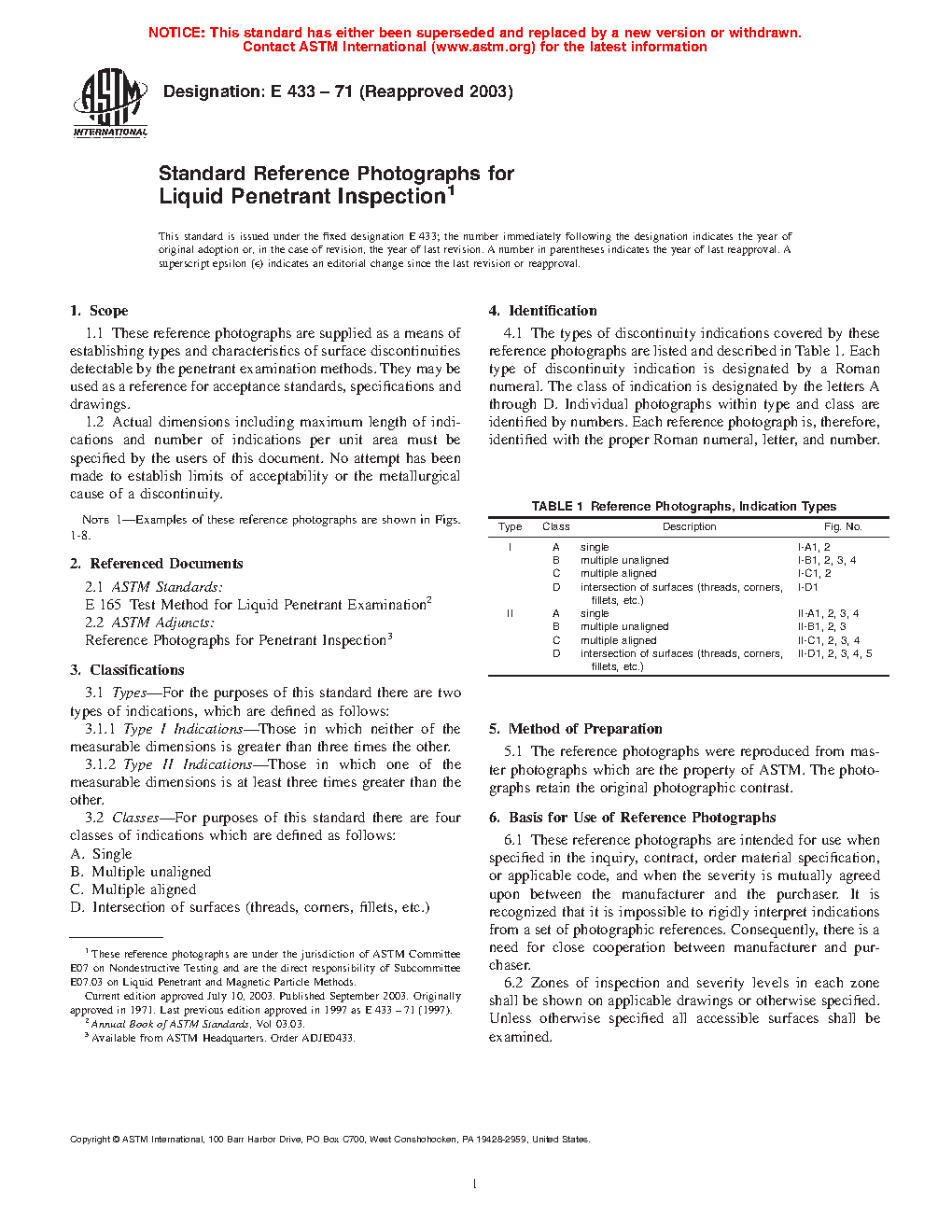

Standard Reference Photographs for Liquid Penetrant Inspection
Most recent standard

Summary

1.1 These reference photographs are supplied as a means of establishing types and characteristics of surface discontinuities detectable by the penetrant inspection methods. They may be used as a reference for acceptance standards, specifications and drawings.

1.2 Actual dimensions including maximum length of indications and number of indications per unit area must be specified by the users of this document. No attempt has been made to establish limits of acceptability or the metallurgical cause of a discontinuity.

Note-Examples of these reference photographs are shown in Figs. 1, 2, 3, 4, 5, 6, 7, and 8.

Technical characteristics

Publisher American Society for Testing and Materials (ASTM International)
Publication Date 01/01/1971
Confirmation Date 01/01/1997
Collection
Page Count 5
Themes Other methods of testing metals
EAN ---
ISBN ---
Weight (in grams) ---
