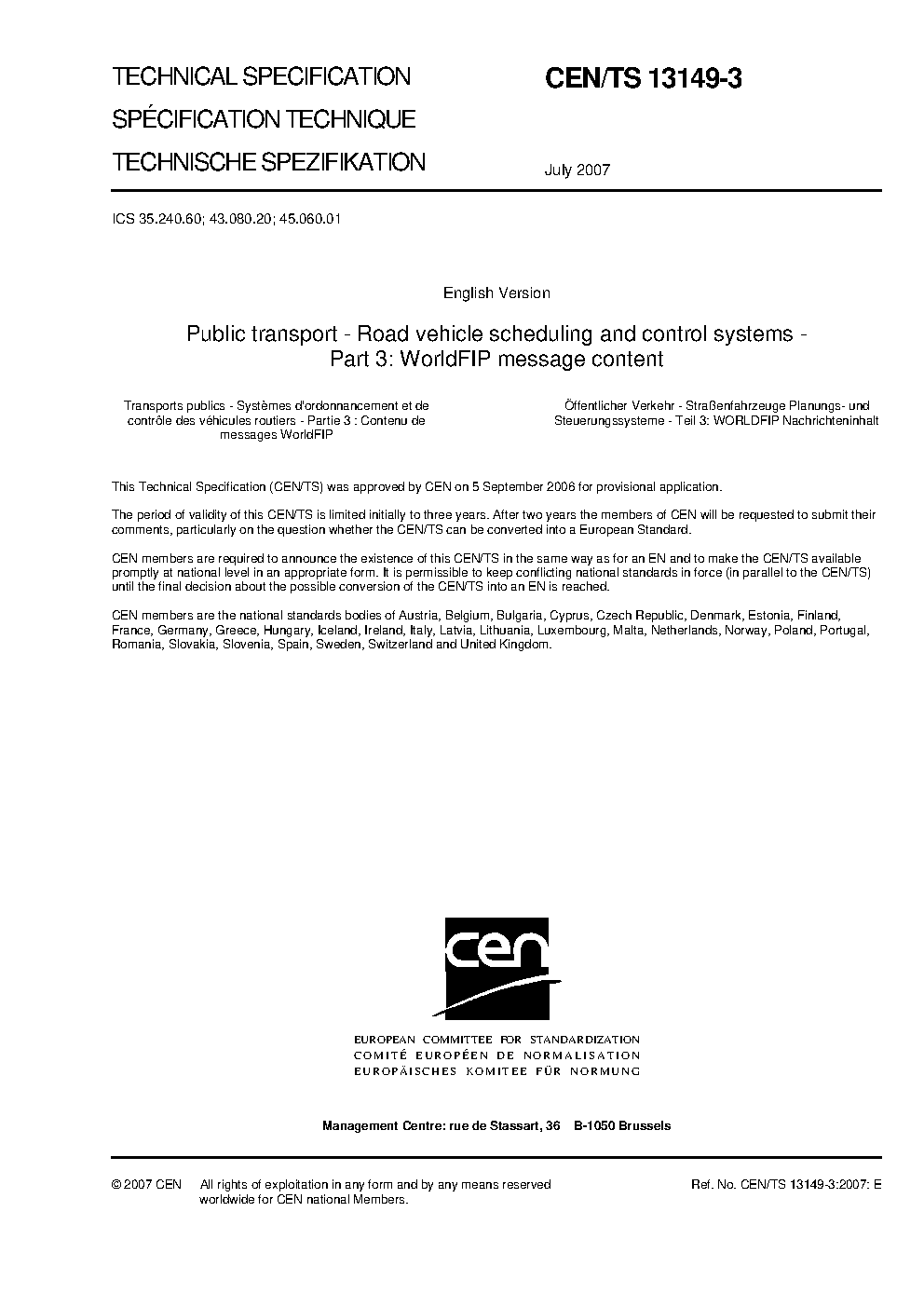

CEN/TS 13149-3:2007

This Technical Specification specifies the choice and the general application's rules of an onboard data
transmission bus between the different equipment for service operations and monitoring of the fleet. This
applies to equipment installed onboard buses, trolley-buses and tramways only as part of a bus fleet operation.
It excludes tramways when they are operated as part of a train, subway or metro operation. This equipment
includes operation aid systems, automatic passenger information systems, fare collection systems, etc.
The equipment directly related to the safety-related functioning of the vehicle (propulsion management, brake
systems, door opening systems, etc...) are excluded from the scope of the present standard and are dealt with
in other standardisation bodies.
For the described application two bus systems are standardised. Part 1 to part 3 of EN 13149 describe the
WorldFIP bus system and part 4 to part 6 describe the CANopen bus system. There is no ranking between the
two bus systems.
The present Technical Specification covers the link between equipment inside a single vehicle. Although it
could be applied to multiple vehicles, this application is not explicitly covered by this standard.
Part 1 of EN 13149 specifies the WorldFIP-based network. This specification describes the general
architecture in terms of hierarchical layers according to the ISO reference model for Open Systems
Interconnection (OSI) specified in ISO 7498.
Part 2 of EN 13149 specifies in detail the connectors and the connector pin assignment and the cabling.
Part 3 (this Technical Specification) specifies in detail the application profiles for a simple network.
