DIN 28000-5:2014-07
Chemical apparatus - Documentation in the life cycle of process plants - Part 5: Graphical symbols of apparatus and machines

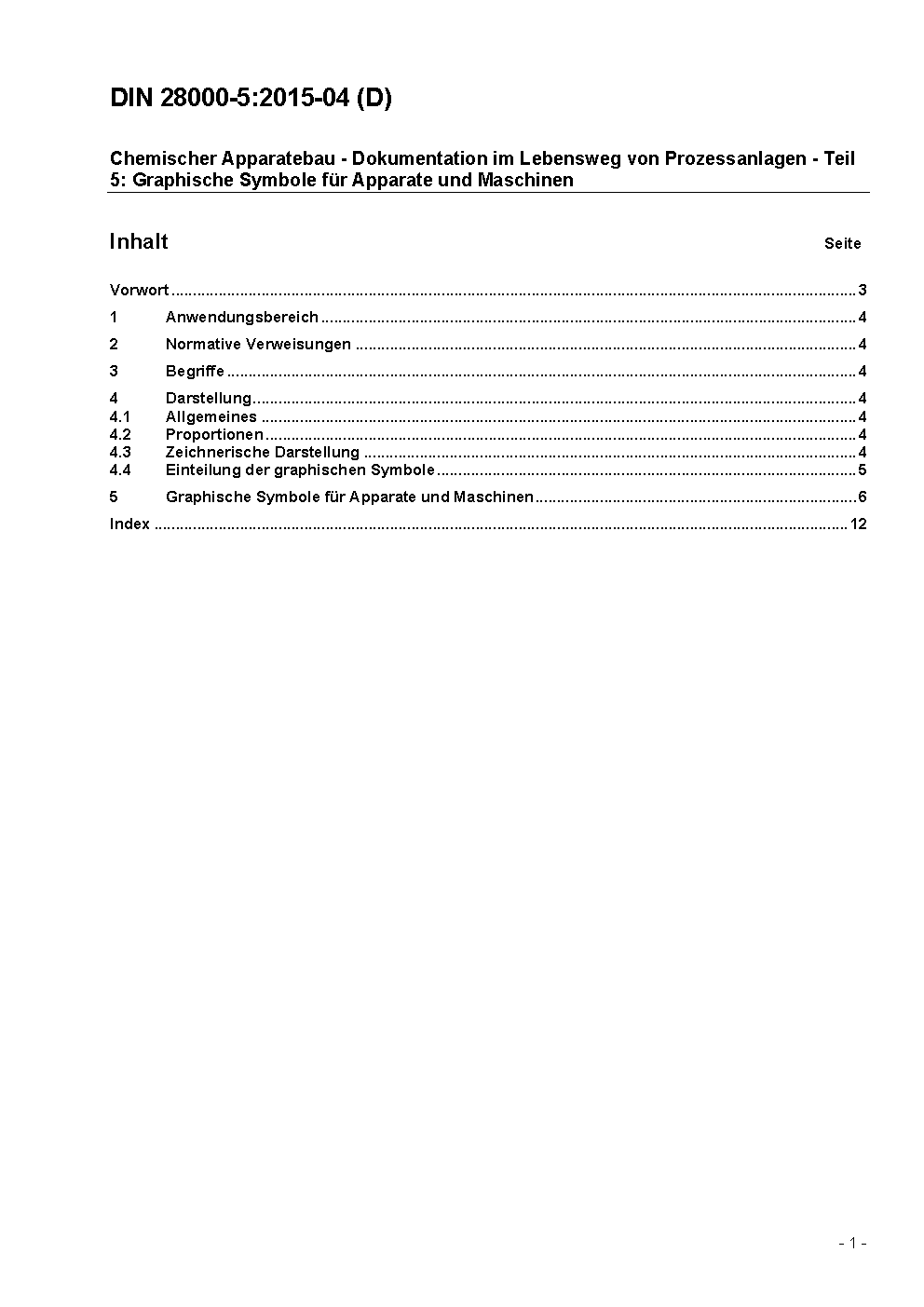

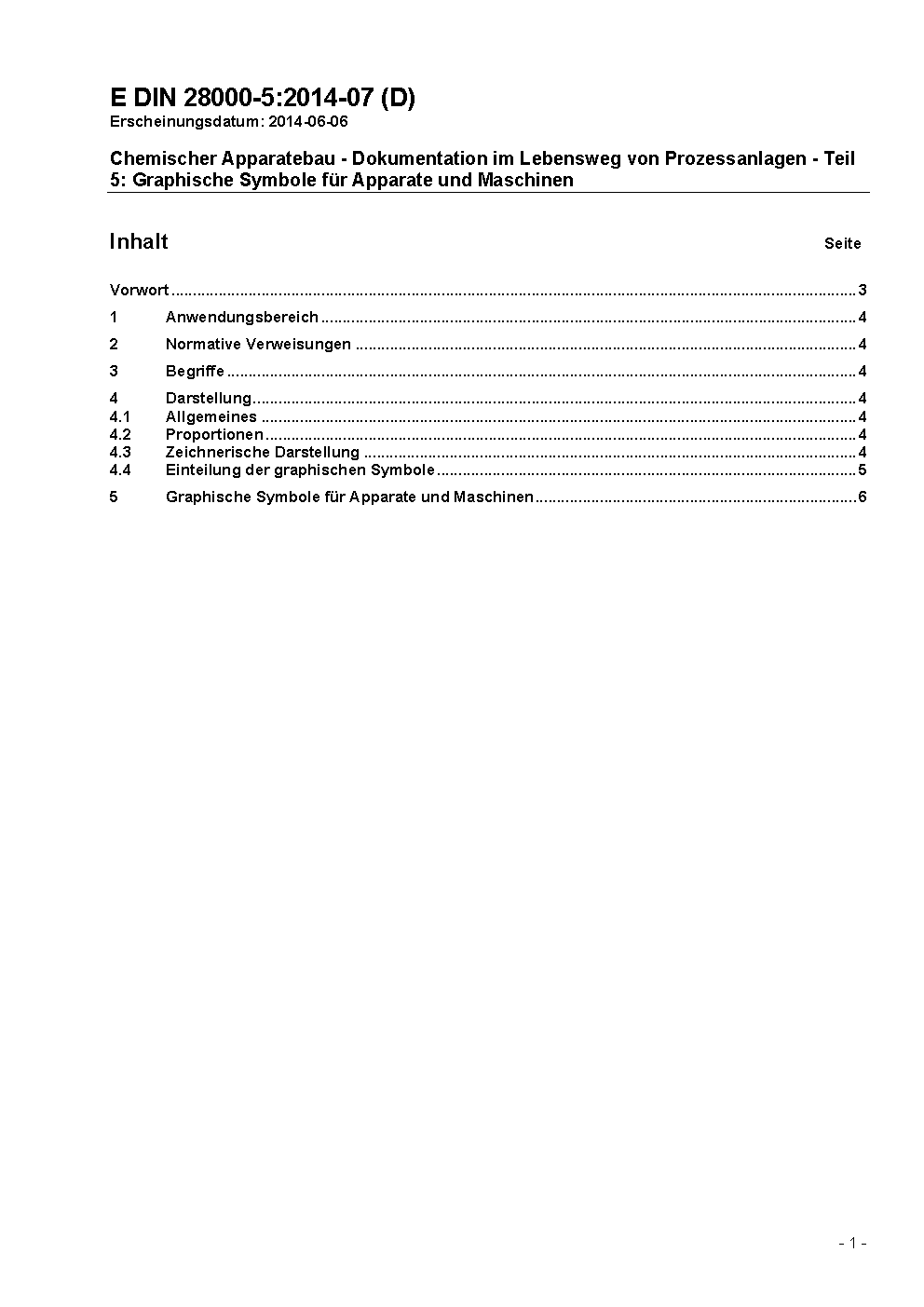

Preview
Summary
This standard specifies graphical symbols for the presentation of apparatus and machines. This standard contains and completes the graphical symbols of apparatus and machines of ISO 10628-2.
Technical characteristics
| Publisher | Deutsche Institut für Normung e.V. (DIN) |
| Publication Date | 07/01/2014 |
| Cancellation Date | 04/01/2015 |
| Page Count | 12 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
