DIN EN ISO 6413:2016-12
Technical product documentation - Representation of splines and serrations (ISO/DIS 6413:2016); German and English version prEN ISO 6413:2016

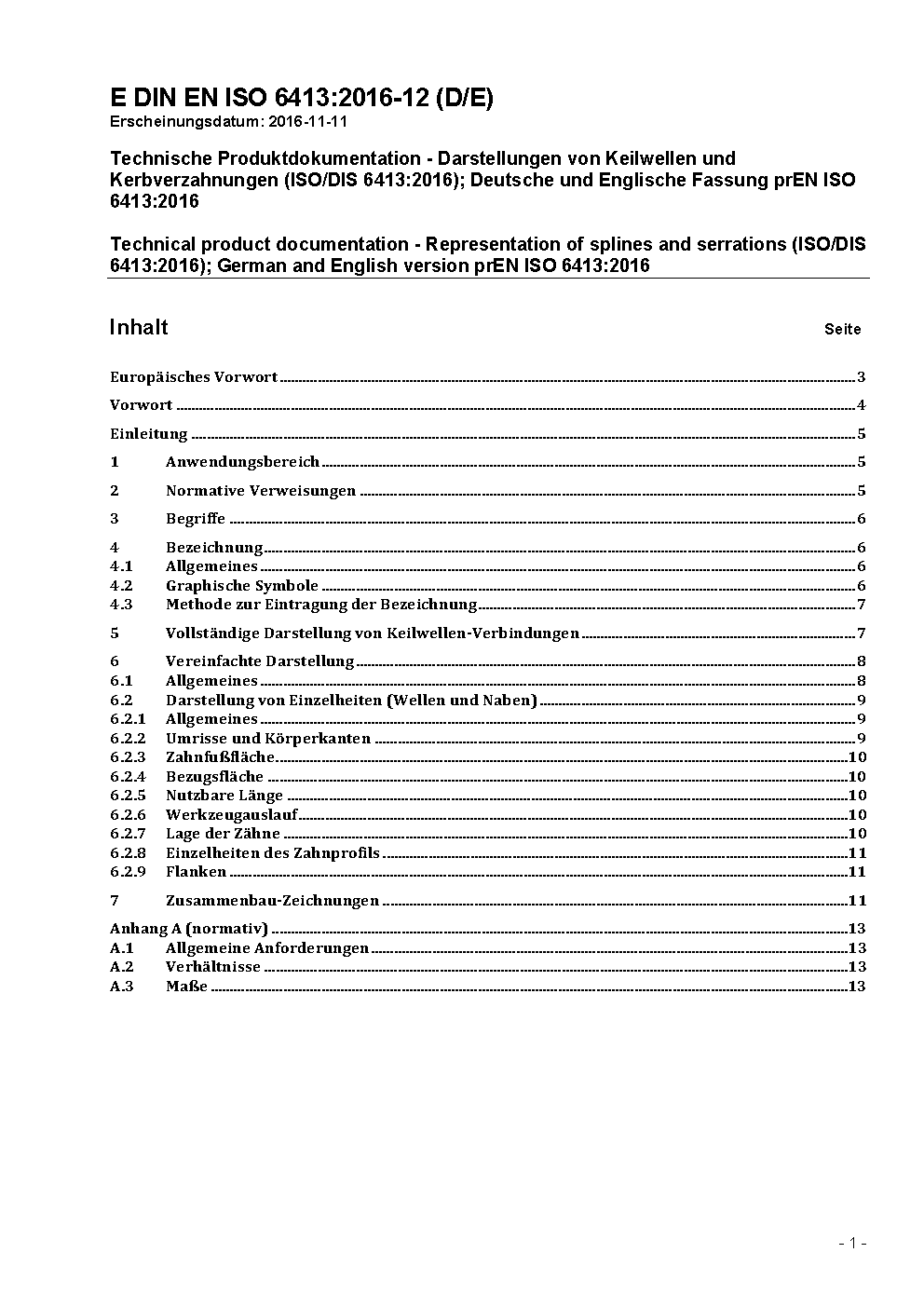

Preview
Summary
This standard specifies rules and graphical symbols for the representation of splines and serrations on technical drawings. These rules are applicable for detail drawings as well as for assembly drawings.
Notes
Prévu pour remplacer DIN ISO 6413 (1990-03).
Technical characteristics
| Publisher | Deutsche Institut für Normung e.V. (DIN) |
| Publication Date | 12/01/2016 |
| Cancellation Date | 12/01/2018 |
| Page Count | 32 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
No products.

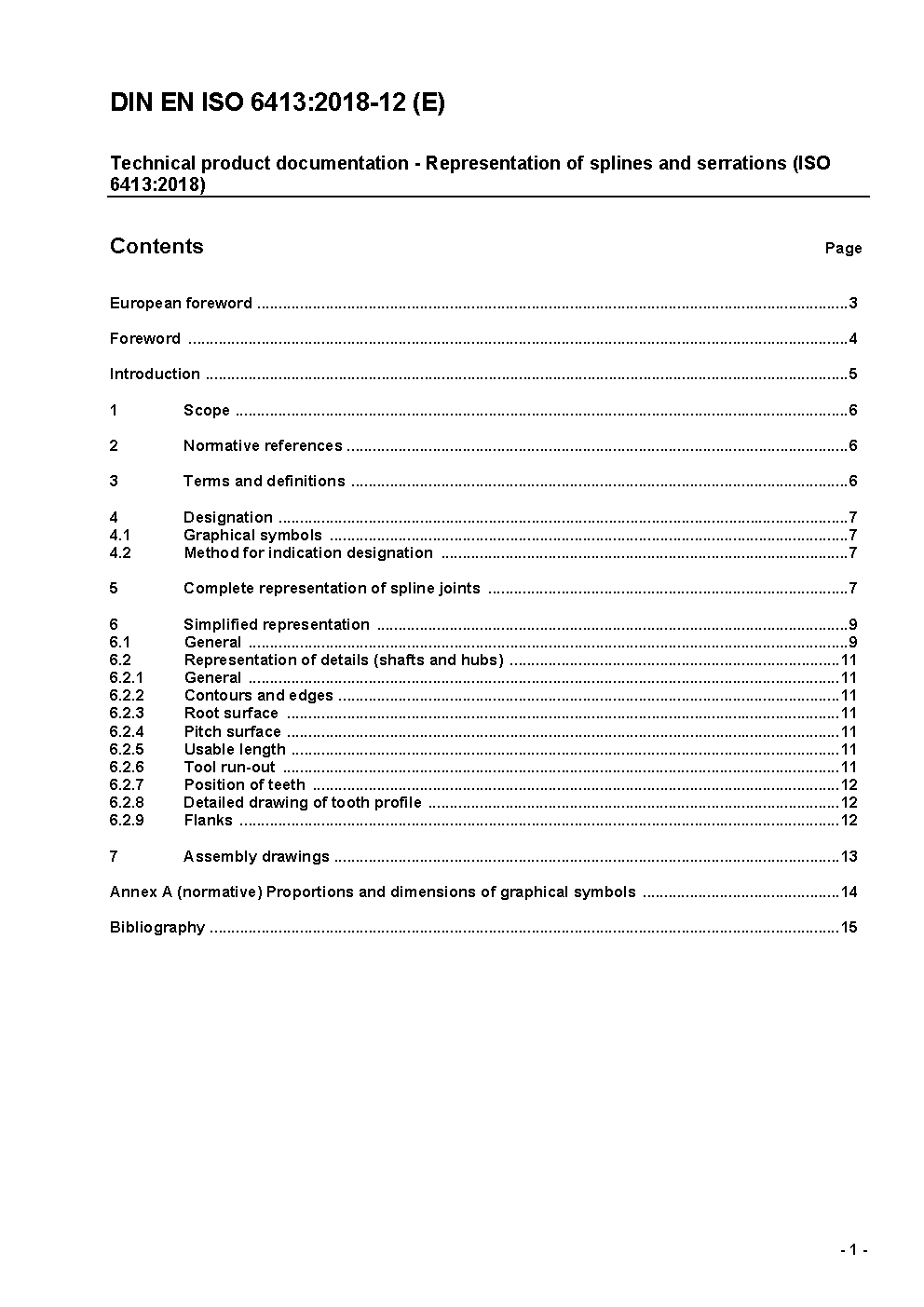

Previous versions
