DIN ISO 15552:2005-12
Pneumatik fluid power - Cylinders with detachable mountings, 1 000 kPa (10 bar) series, bores from 32 mm to 320 mm - Basic, mounting and accessories dimensions (ISO 15552:2004)

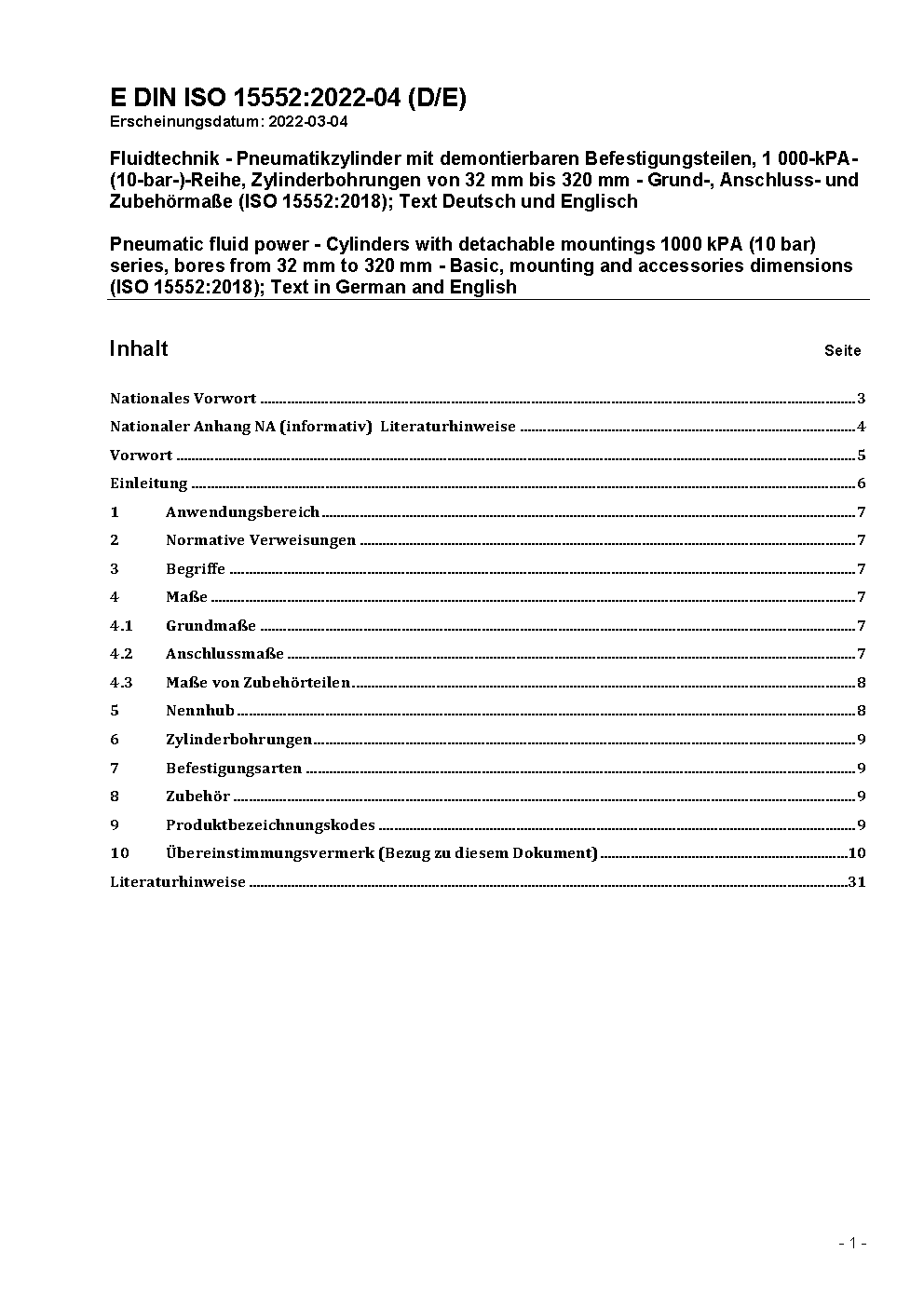

Preview
Summary
This standard establishes a metric series of basic, mounting and accessories dimensions as required for interchangeability of single- or double-rod pneumatic cylinders, with or without provisions for magnetic sensors for a maximum rated pressure of 1000 kPa (10 bar). It is applicable to pneumatic cylinders with detachable mountings.
Notes
Pour le(s) document(s) annulé(s) et non remplacé(s) VDMA 24562-1 (1992-01) l'éditeur recommande ce document.
Technical characteristics
| Publisher | Deutsche Institut für Normung e.V. (DIN) |
| Publication Date | 12/01/2005 |
| Page Count | 21 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
