DIN ISO 6020-2:2017-03
Hydraulic fluid power - Mounting dimensions for single rod cylinders, 16 MPa (160 bar) series - Part 2: Compact series (ISO 6020-2:2015); Text in German and English

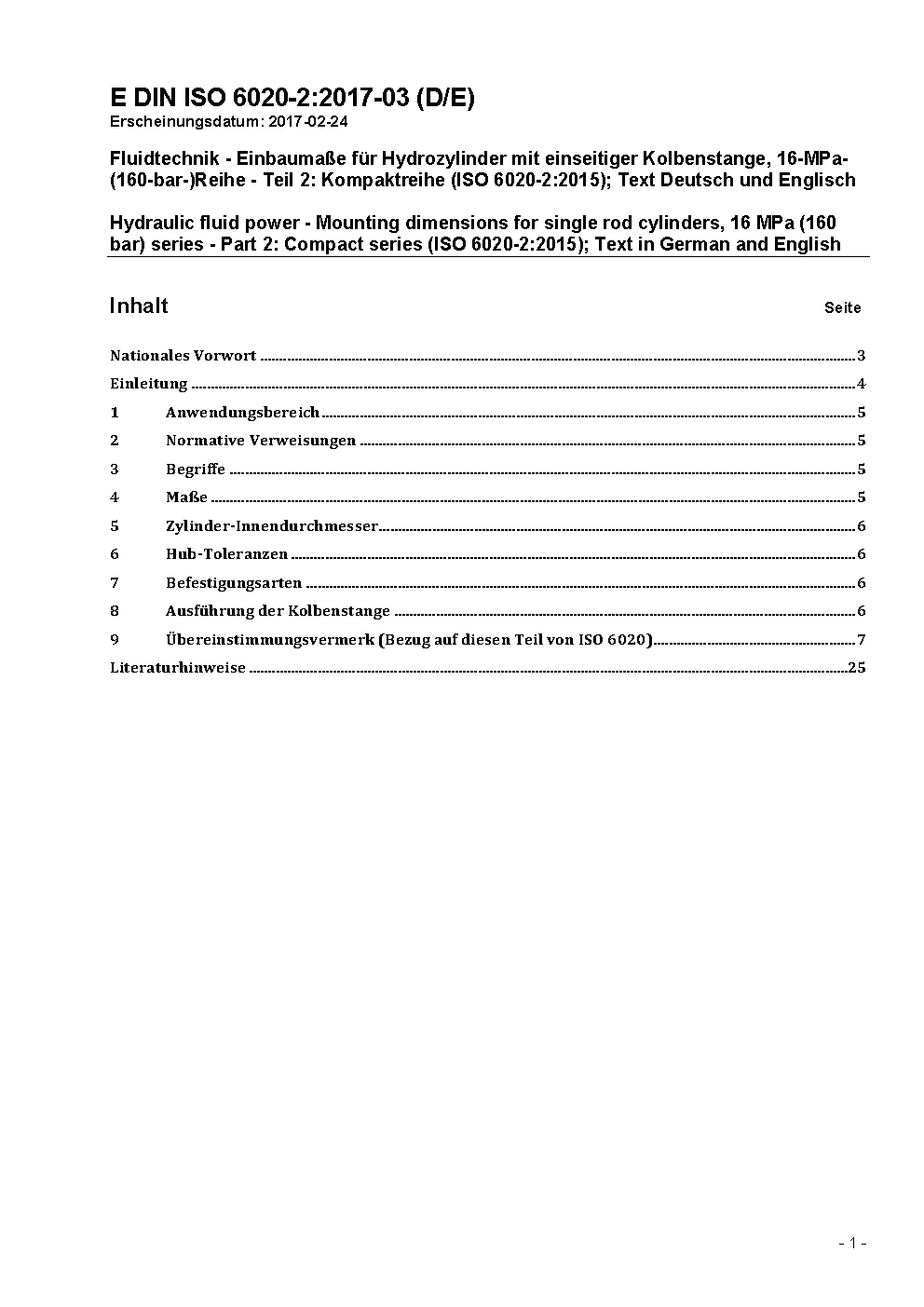

Preview
Summary
This part of ISO 6020 establishes metric mounting dimensions for compact series cylinders, 16 MPa [160 bar], as required for interchangeability of commonly-used hydraulic cylinders. This part of ISO 6020 allows manufacturers of hydraulic equipment flexibility in the design of metric cylinders and does not restrict technical development; however, it does provide basic guidelines. The compact series dimensions are most applicable to square head cylinders.
Notes
Prévu pour remplacer DIN ISO 6020-2 (2010-07).
Technical characteristics
| Publisher | Deutsche Institut für Normung e.V. (DIN) |
| Publication Date | 03/01/2017 |
| Cancellation Date | 01/01/2018 |
| Page Count | 50 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
No products.

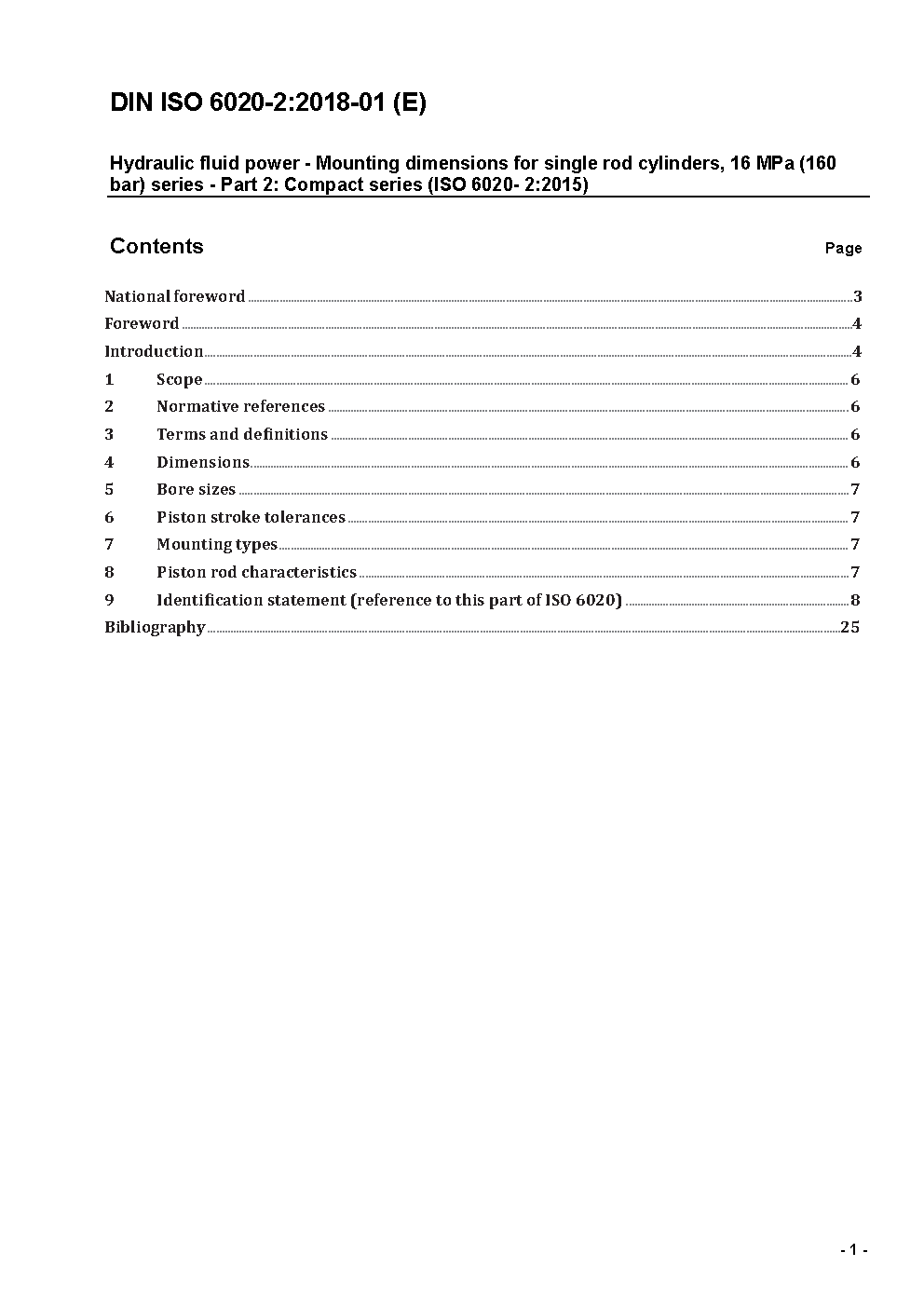

Previous versions
