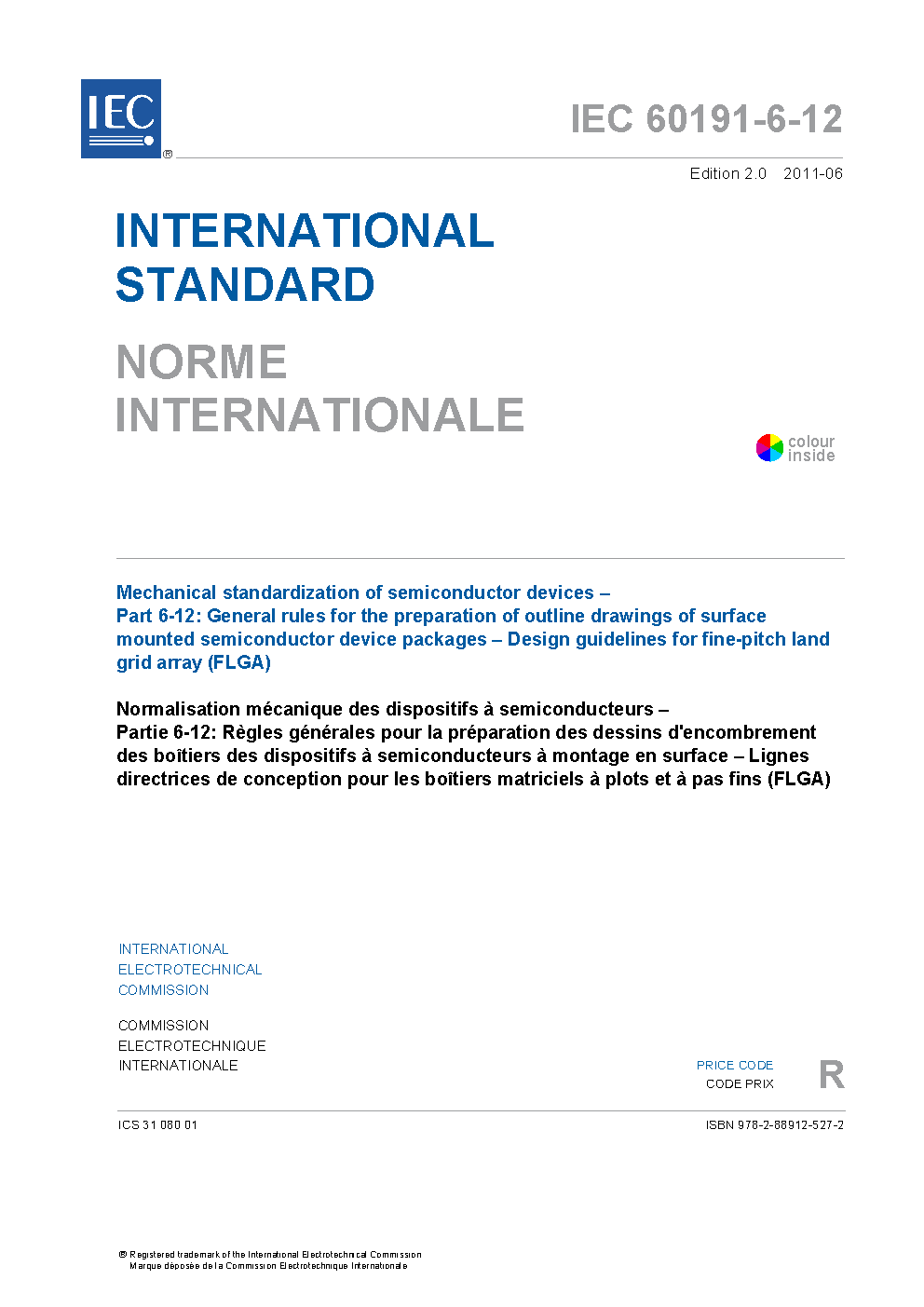

IEC 60191-6-12:2011
IEC 60191-6-12:2011 Mechanical standardization of semiconductor devices - Part 6-12: General rules for the preparation of outline drawings of surface mounted semiconductor device packages - Design guidelines for fine-pitch land grid array (FLGA)
Preview
Summary
IEC 60191-6-12:2011 provides standard outline drawings, dimensions, and recommended variations for all fine-pitch land grid array packages (FLGA) with terminal pitch of 0,8 mm or less. This edition includes the following significant changes with respect to the previous edition:
- scope is expanded so that this standard include the square type FLGA. The title of this standard has been changed accordingly: "Rectangular type" has been deleted from the title;
- ball pitch of 0,3 mm has been added;
- datum is changed from the body datum to the ball datum;
- combination lists of D, E, MD, and ME have been revised.
- scope is expanded so that this standard include the square type FLGA. The title of this standard has been changed accordingly: "Rectangular type" has been deleted from the title;
- ball pitch of 0,3 mm has been added;
- datum is changed from the body datum to the ball datum;
- combination lists of D, E, MD, and ME have been revised.
Technical characteristics
| Publisher | International Electrotechnical Commission (IEC) |
| Publication Date | 06/08/2011 |
| Edition | 2.0 |
| Page Count | 37 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
