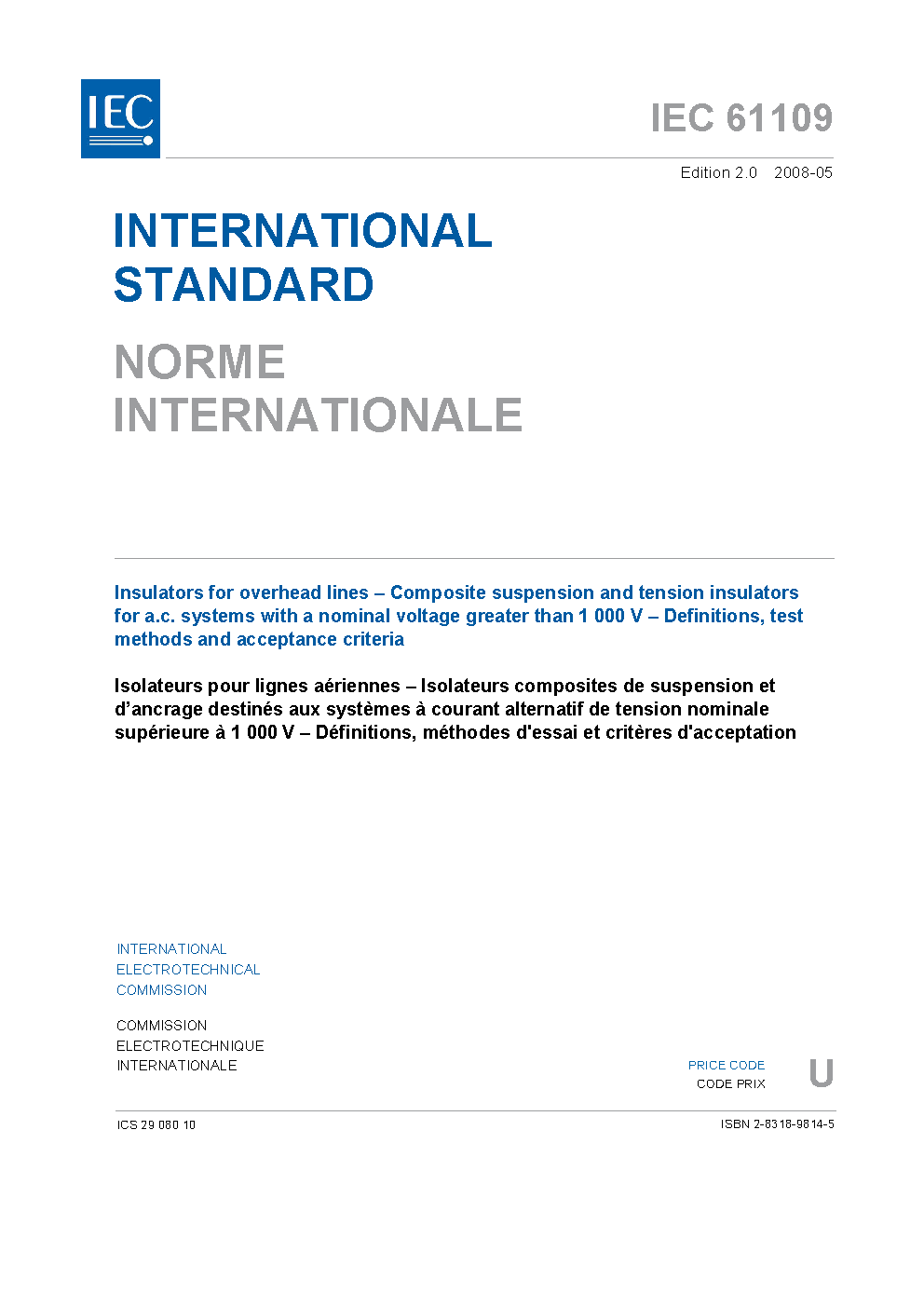

IEC 61109:2008
IEC 61109:2008 Insulators for overhead lines - Composite suspension and tension insulators for a.c. systems with a nominal voltage greater than 1 000 V - Definitions, test methods and acceptance criteria
Preview
Summary
IEC 61109:2008 applies to composite suspension/tension insulators consisting of a load-bearing cylindrical insulating solid core consisting of fibres - usually glass - in a resin-based matrix, a housing (outside the insulating core) made of polymeric material and end fittings permanently attached to the insulating core. The main technical changes with respect to the previous edition are
- removal of tests procedures now given in IEC 62217;
- inclusion of clauses on tolerances, environmental conditions, transport, storage and installation;
- general improvement of the description of tests and addition of a new Annex C on non-standard loads.
- removal of tests procedures now given in IEC 62217;
- inclusion of clauses on tolerances, environmental conditions, transport, storage and installation;
- general improvement of the description of tests and addition of a new Annex C on non-standard loads.
Technical characteristics
| Publisher | International Electrotechnical Commission (IEC) |
| Publication Date | 05/27/2008 |
| Edition | 2.0 |
| Page Count | 57 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
