NBN EN 3660-066:2017
Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 066: Cable outlet, style K, 90°, for heat shrinkable boot, shielded, sealed - Product standard

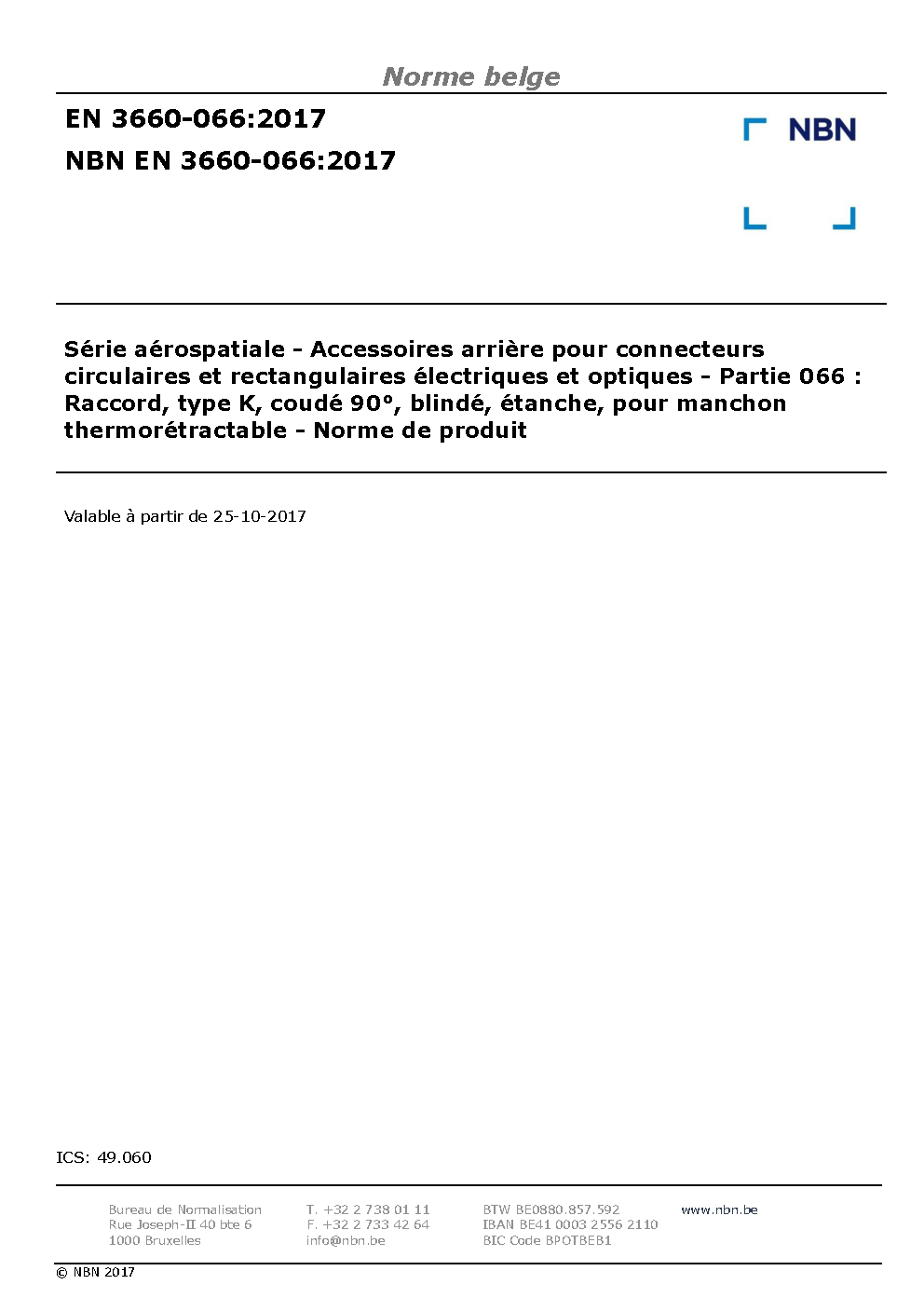

Preview
Summary
This European Standard defines a range of cable outlets, style K, 90°, shielded, sealed for heat shrinkable boot, for use with memory metal rings under the following conditions.
The mating connectors are listed in EN 3660-002.
Temperature range, Class N : ? 65 °C to 200 °C
Class K : ? 65 °C to 200 °C
Class W : ? 65 °C to 175 °C
Class T : ? 65 °C to 175 °C (Nickel PTFE plating)
Class Z : ? 65 °C to 175 °C (Zinc nickel plating)
Associated electrical accessories : EN 3660-034 memory metal rings (for shield termination backshells).
These cable outlets are designed for termination of overall shielding braid or individual cable shields. They accommodate/permit the termination of heat shrinkable boots.
The mating connectors are listed in EN 3660-002.
Temperature range, Class N : ? 65 °C to 200 °C
Class K : ? 65 °C to 200 °C
Class W : ? 65 °C to 175 °C
Class T : ? 65 °C to 175 °C (Nickel PTFE plating)
Class Z : ? 65 °C to 175 °C (Zinc nickel plating)
Associated electrical accessories : EN 3660-034 memory metal rings (for shield termination backshells).
These cable outlets are designed for termination of overall shielding braid or individual cable shields. They accommodate/permit the termination of heat shrinkable boots.
Technical characteristics
| Publisher | Bureau de Normalisation Belge (NBN) |
| Publication Date | 10/25/2017 |
| Cancellation Date | 03/31/2018 |
| Page Count | 4 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
