NBN ISO 6480:2021
Test conditions for horizontal internal type broaching machines — Testing of accuracy

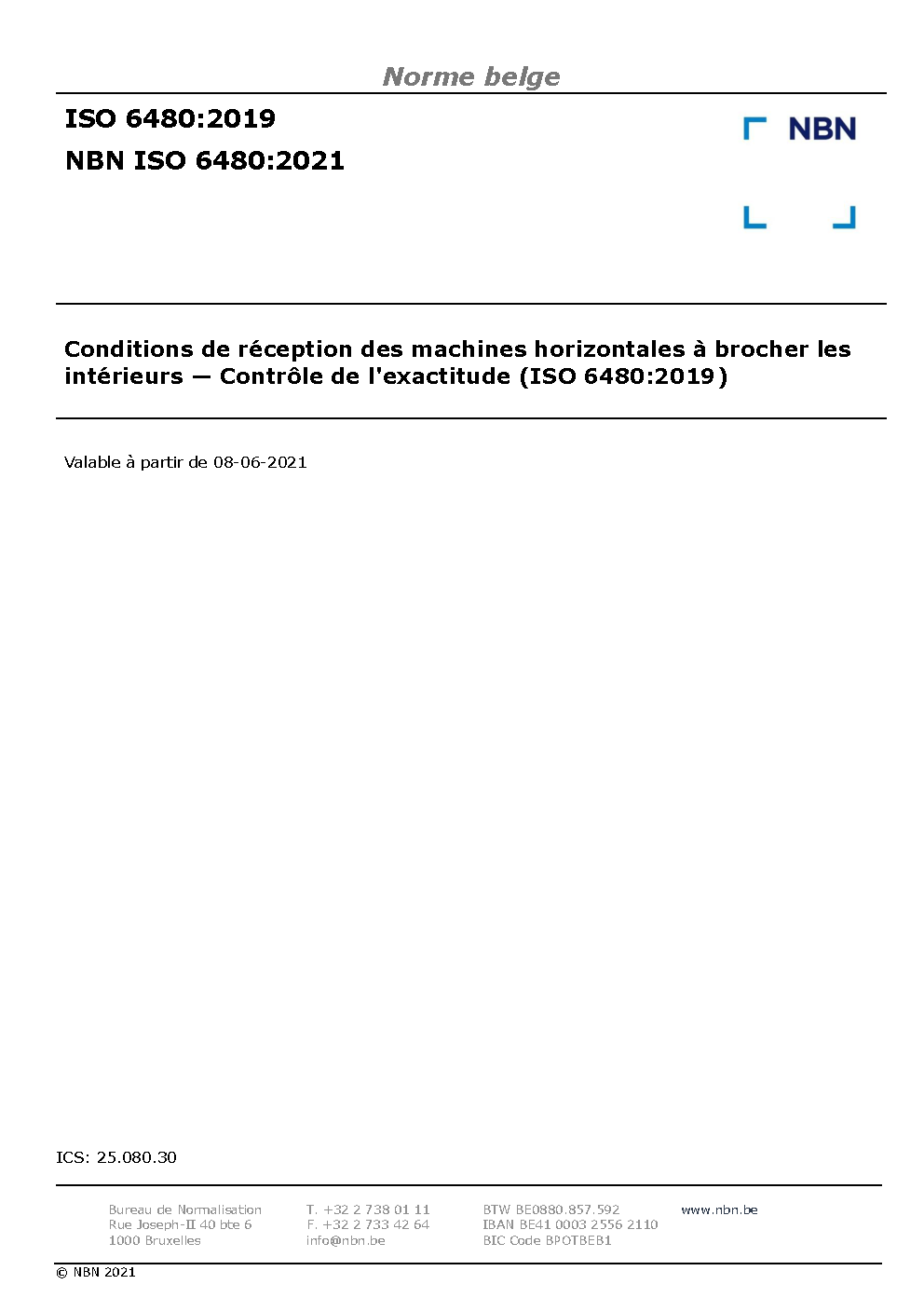

Preview
Summary
This document specifies, with reference to ISO 230-1, the geometric tests on internal type broaching
machines with horizontal Z-axis providing the main cutting motion.
It also specifies the applicable tolerances corresponding to the tests mentioned above for normal-
accuracy horizontal internal type broaching machines.
This document explains concepts or configurations and common features of horizontal internal type
broaching machines. It also provides related terminology and designation of axes.
It deals only with the verification of the accuracy of the machine. It does not apply to the operational
testing of the machine (e.g. vibration, abnormal noise, stick-slip motion of components), nor to machine
characteristics (e.g. speeds, feeds) as such checks are generally carried out before testing the accuracy.
machines with horizontal Z-axis providing the main cutting motion.
It also specifies the applicable tolerances corresponding to the tests mentioned above for normal-
accuracy horizontal internal type broaching machines.
This document explains concepts or configurations and common features of horizontal internal type
broaching machines. It also provides related terminology and designation of axes.
It deals only with the verification of the accuracy of the machine. It does not apply to the operational
testing of the machine (e.g. vibration, abnormal noise, stick-slip motion of components), nor to machine
characteristics (e.g. speeds, feeds) as such checks are generally carried out before testing the accuracy.
Technical characteristics
| Publisher | Bureau de Normalisation Belge (NBN) |
| Publication Date | 06/08/2021 |
| Page Count | 4 |
| EAN | --- |
| ISBN | --- |
| Weight (in grams) | --- |
