SAE J 2691:2018-04-15
Superseded Standard
Historical

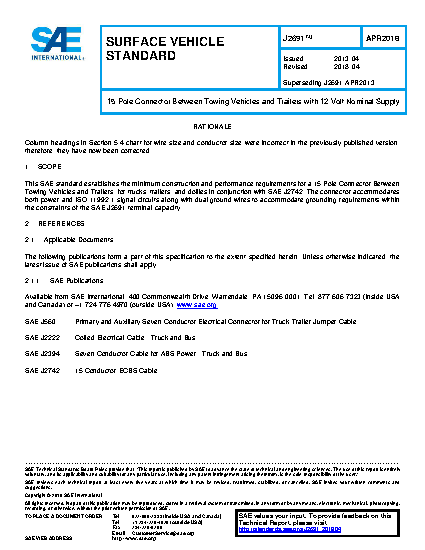

SAE J 2691:2018-04-15

15 Pole Connector Between Towing Vehicles and Trailers with 12 Volt Nominal Supply

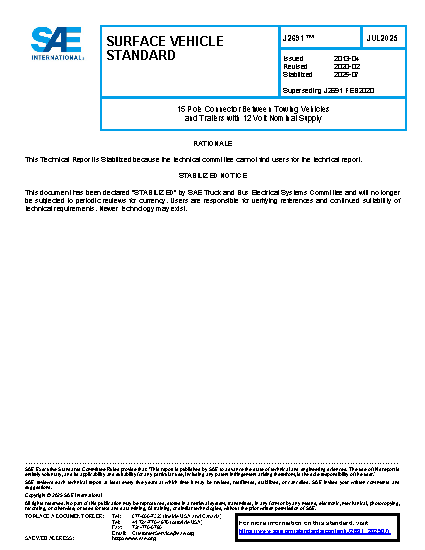

Most recent standard

Summary

This SAE standard establishes the minimum construction and performance requirements for a 15 Pole Connector Between Towing Vehicles and Trailers, for trucks, trailers, and dollies in conjunction with SAE J2742. The connector accommodates both power and ISO 11992-1 signal circuits along with dual ground wires to accommodate grounding requirements within the constraints of the SAE J2691 terminal capacity.

Technical characteristics

Publisher SAE International
Publication Date 04/15/2018
Page Count 8
Themes Commercial Vehicle
EAN ---
ISBN ---
Weight (in grams) ---
No products.

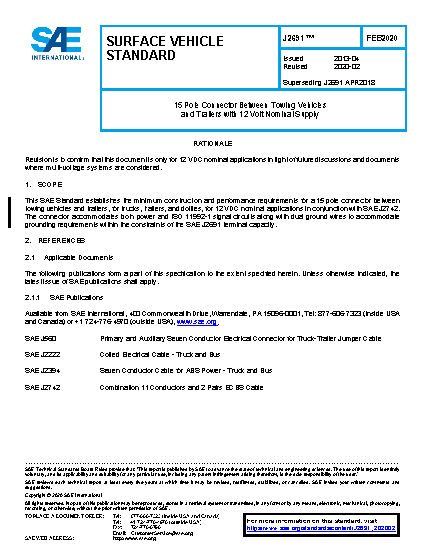

Previous versions
