SAE MA 1567B:2018-08-23
Superseded , Reaffirmed Standard
Historical

SAE MA 1567B:2018-08-23

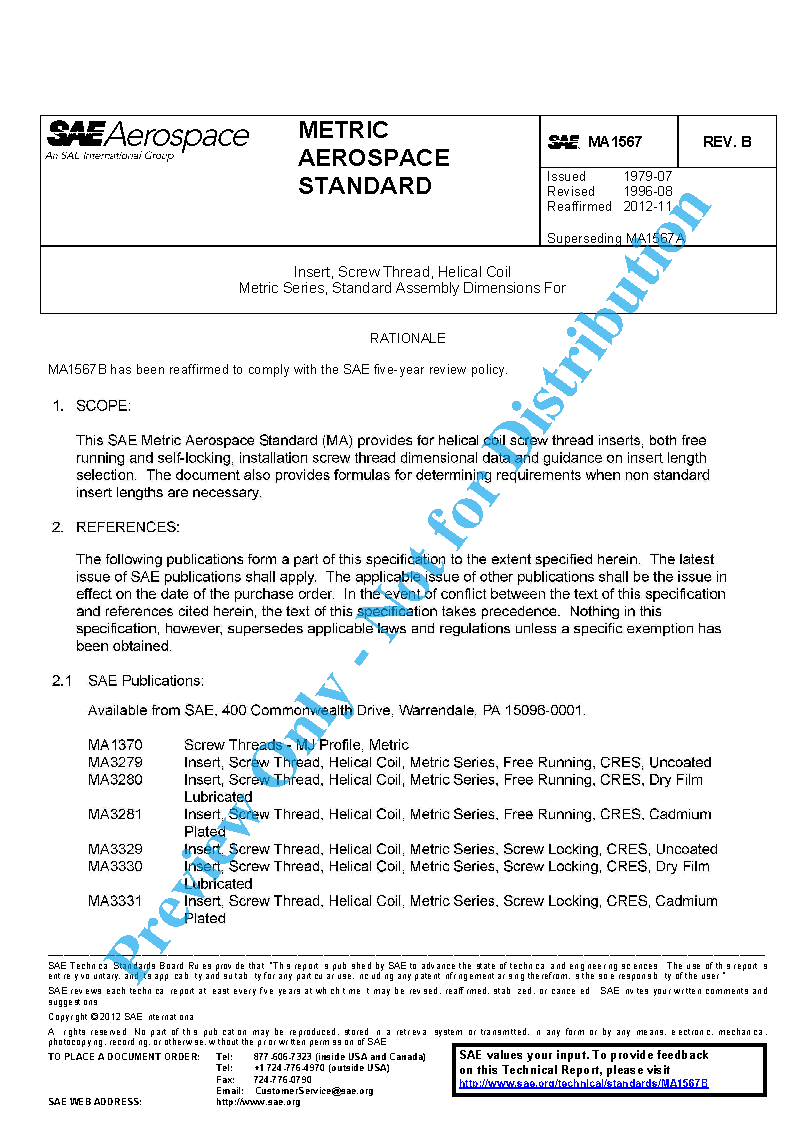

Insert, Screw Thread, Helical Coil Metric Series, Standard Assembly Dimensions For

Summary

This SAE Metric Aerospace Standard (MA) provides for helical coil screw thread inserts, both free running and self-locking, installation screw thread dimensional data and guidance on insert length selection. The document also provides formulas for determining requirements when non standard insert lengths are necessary.

Notes

Approuvée 2012-11-08, 2012-11-00, 2006-05-00, 2001-10-00.

Technical characteristics

Publisher SAE International
Publication Date 11/08/2012
Confirmation Date 08/23/2018
Page Count 15
Themes Aerospace
EAN ---
ISBN ---
Weight (in grams) ---
